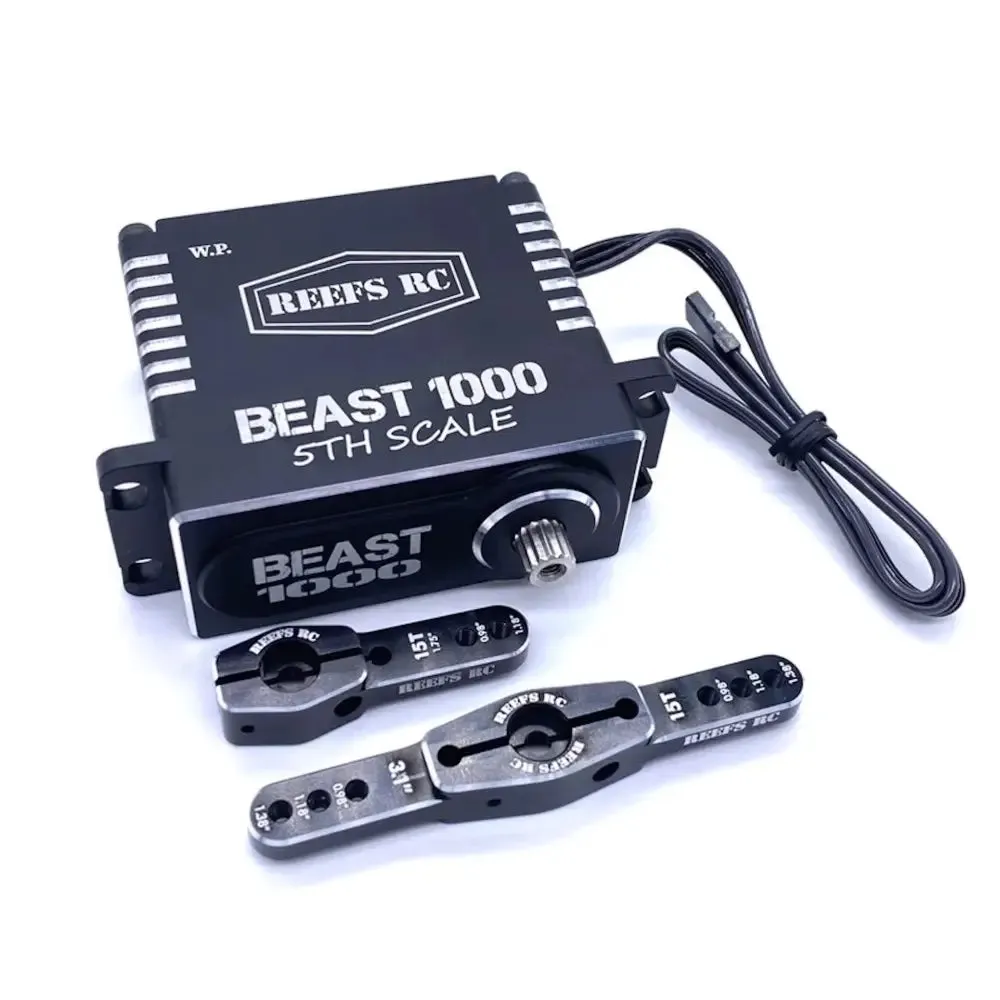

• High Torque High Speed Brushless Servo, INCLUDES: REEFS SINGLE HORN / REEFS DOUBLE HORN
• SUBMARINE WATERPROOF: 7 Point Seals, Magnetic Angle Sensor, Pulse Width Modulation Control, Voltage: 4.8V - 8.4V
• Mechanical Angle: No Limit, Internal: Steel Gears / All CNC Aluminum Casing, Bearing Type: 5 Ball Bearings / Wires: 22AWG
• Torque: 800oz @ 6v/ 900oz @7.4v/ 1080oz @8.4v, Speed: .11sec @6v/.095sec @7.4v/.08sec @8
• Spline: 15T / Dead Band Width: 2uSec, BEC Not Req. (Recommended for max performance)

Load Current:

8800 mA @ 4.8V 9800 mA @ 6.0V 10500 mA @ 7.4V 11000 mA @ 8.4V

Unload Current:

550 mA @ 4.8V 600 mA @ 6.0V 700 mA @ 7.4V 820 mA @ 8.4V

Hardware Included:

(1) Servo Horn Screw 3.5x8mm

(3) 3x16mm Cap Head Screws for end of horns.

(4) 2mm Horn Clamping Cap Head Screws
