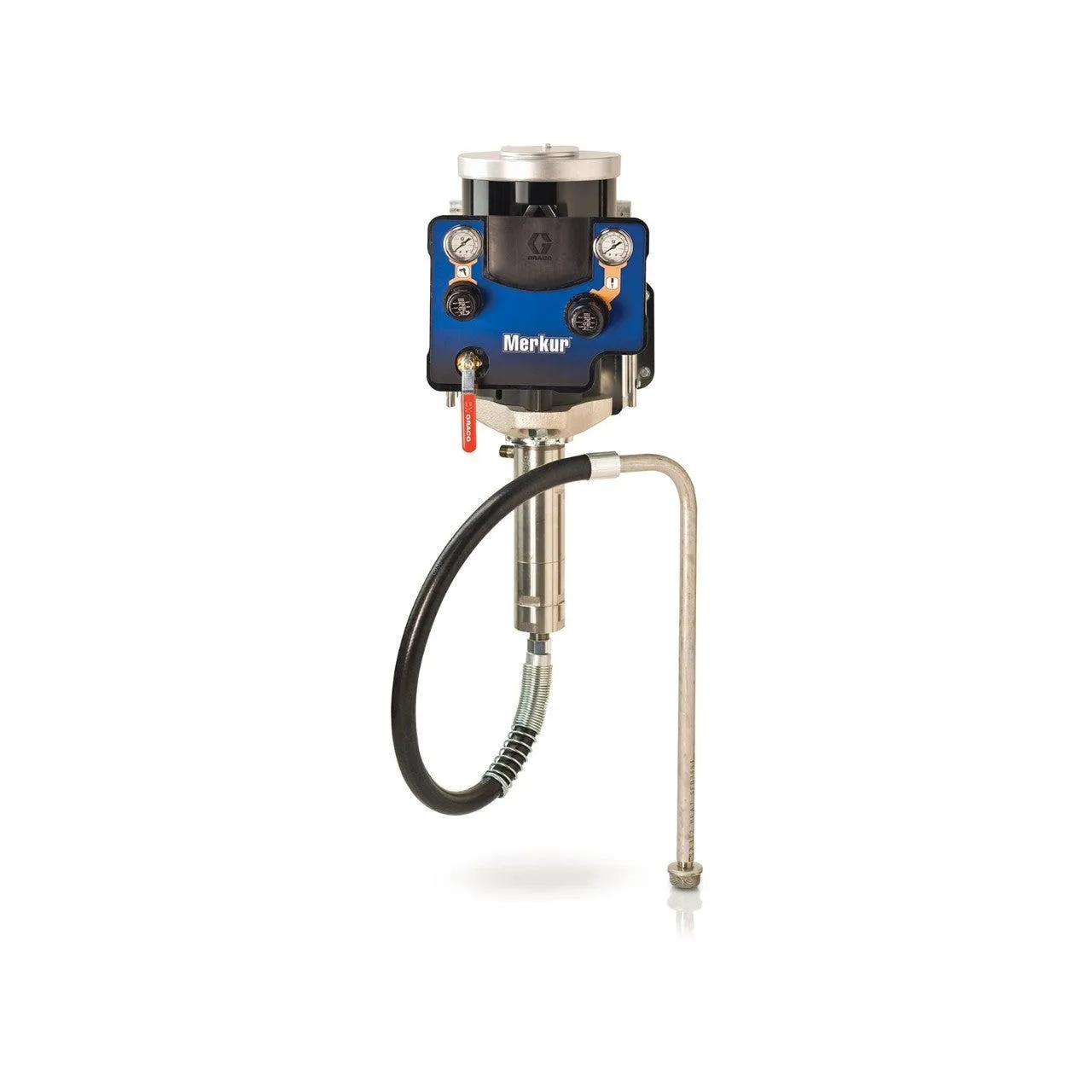

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.
FEATURES
- Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
- Compact – fits into tight areas
- Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
- Easy to use, easy to clean
- Stainless steel option allows for waterborne coatings
SPECIFICATIONS
| Air Inlet Size (in) | 1/2 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Compatible Material | Protective Coating |
| Compatible Replacement Pump | W36DBS |
| Control Type | Fixed Ratio |
| Convertible | Non-Convertible |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8, 1/4 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Wall Mount |
| Hose Inlet Diameter (in) | 1/4 |
| Includes | XTR-5 Spray Gun, 5129 XHD Tip, Fluid Hose, Fluid Filter |
| Inlet Paint Strainer | 8 Mesh, 16 Mesh |
| Lower Configuration | Stainless Steel;3/4 in. Inlet;Fluid Filter |
| Material Application | Paints, Primers |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Fluid Working Pressure (psi) | 3600 |
| Maximum Sound Pressure Level (dB(A)) | 68.9 |
| Maximum Tip Size (in) | 0.029 |
| Maximum Working Pressure (MPa) | 24.8 |
| Maximum Working Pressure (psi) | 3600 |
| Mix Ratio | 36:1 |
| Model | Merkur |
| Motor Type | Pneumatic Motor |
| Mount Type | Wall Mount |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Package Options | XTR-5 Gun, 1/4 in. x 25 ft. (7.6 m) Hose |
| Power Source | Air |
| Pressure Control Type | Air Regulator |
| Product Type | Single Leg |
| Pump Pressure Ratio | 36:1 |
| Pump Rod Type | Carbon Steel |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Pneumatic Piston Pump, Displacement Pump |
| Series | Standard |
| Type | Airless Sprayer |
| Weight (lb) | 87 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Aluminum, Acetal, Polyethylene, Polypropylene, Carbide, Polyurethane |
