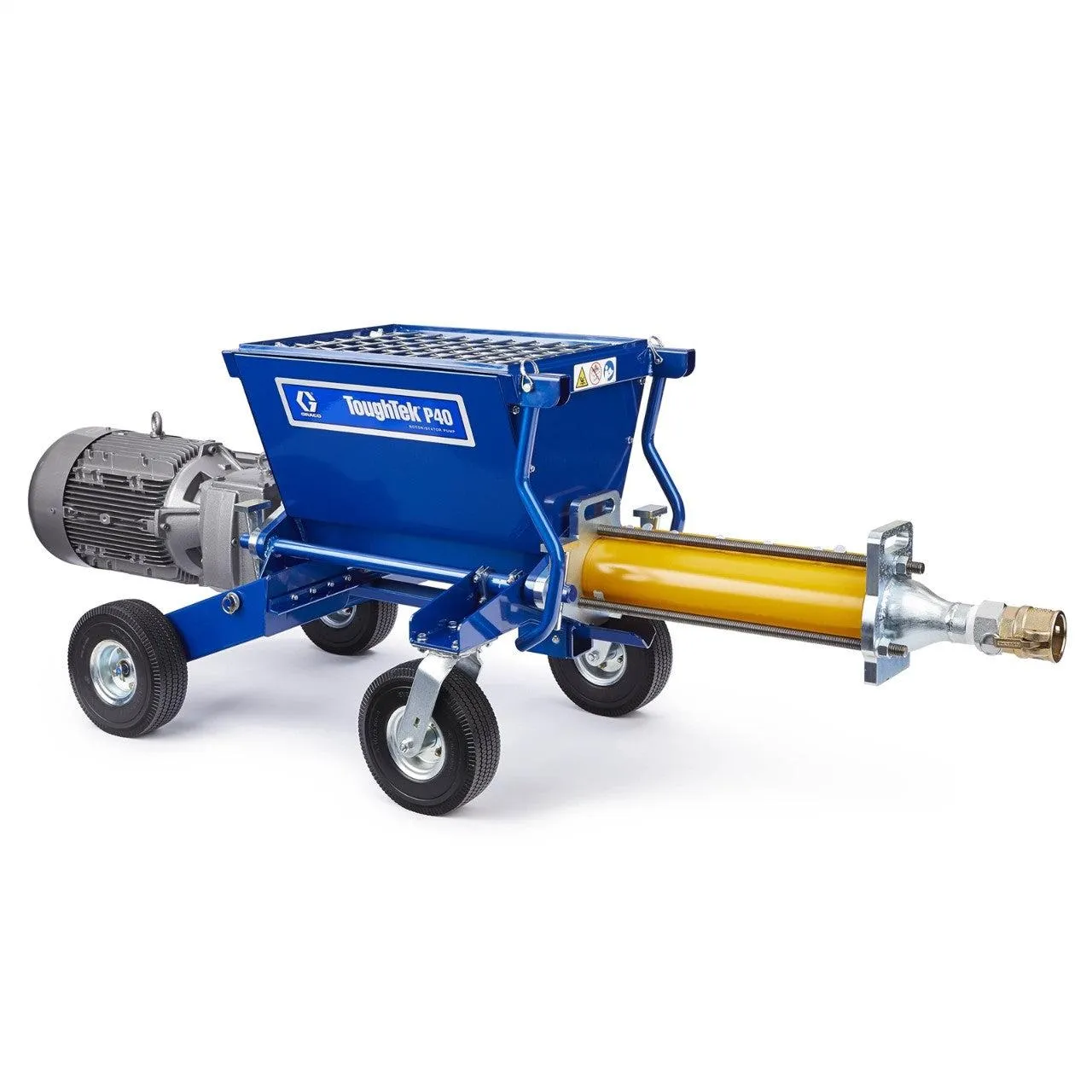

Known as the workhorse because of its 600 psi (42 bar) output pressure, the ToughTek P40 is built for high volume applications. The high flow rate and high pressure allows contractors to pump stucco and EIFS up a tall building while keeping the pump on the ground, saving your operation time.
Built for high-volume applications
-
Easy to use, easy to move
-
Variable pump output lets you adjust material flow
-
Flow rate: 18.7 gpm (71 lpm)
-
Output (underlayment): 300 bags per hour (based on 50-lb/22.6 kg bags)
-
Pumping distance: 400 feet (122 m)
-
Pumping height: 150 feet (46 m)
-
Reversible pump direction
-
Hopper capacity: 16 Gal (60.6 L)
-
Power requirements: 230V, 30A, 3-ph
-
Easy to take apart for quick clean-up and transport
| Compatible Material | Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing |
|---|---|
| Fluid Inlet Size (in) | 4.22 |
| Fluid Outlet Size (in) | 2.0 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Material Output (bags/hr) | 300 |
| Maximum Flow Rate (GPM) | 18.7 |
| Maximum Working Pressure (MPa) | 4.1 |
| Maximum Working Pressure (psi) | 600 |
| Model | ToughTek |
| Motor Type | Electric |
| Overall Height (ft) | 2.58 |
| Overall Height (in) | 31 |
| Overall Length (ft) | 7 |
| Overall Length (in) | 84 |
| Overall Width (ft) | 2.42 |
| Overall Width (in) | 29 |
| Power Rating (HP) | 15 |
| Power Rating (W) | 11186 |
| Power Rating (kW) | 11.19 |
| Series | P40 |
| Type | Electric Rotor Stator Pump |
| Weight (lb) | 530 |
| Wetted Parts | Tool Steel, Painted Steel, Plated Steel, PORON |
